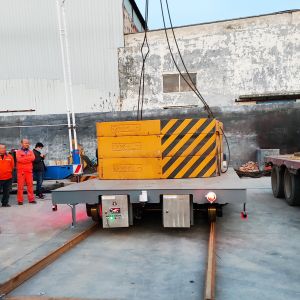

    40 Tons Wireless Remote Control Rail Transfer Trolley For Molds Handling

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : KPX-40T
    Certification : CE, ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 sets per year
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    40 Tons Wireless Remote Control Rail Transfer Trolley For Molds Handling


    40 Tons Wireless Remote Control Rail Transfer Trolley For Molds Handling


    Henan Remarkable 40 Tons Wireless Remote Control Rail Transfer Trolley For Molds Handling Will Perfectly Suit Your Needs For Coil Handling In Steel Industry, Concrete Manufacturing, Transportation In Factories, Warehouses, Ports And The Variety Of Hard Duty Fields Where Moving On Rails Is Required And Production Cycles Are Regular Both Time-Wise And Route-Wise. Henan Remarkable Offers Modern Die Change Carts On Rails To Respond To Rapid Changes In Metalworking Industry And Reshape Its Logistics.


    It Can Be Used In S-Shaped Track, Arc Track, Flammable And Explosive, And Ferry Occasions, And A Hydraulic Lifting System Can Be Installed On The Flat Car. The Flat Car DC Motor Has The Advantages Of Stable Starting, Large Starting Force Distance, Small Impact On The Reducer, Low Voltage, Long Service Life, Etc. The Running Distance Is Not Limited, And The Requirements For Track Laying Are Not High, And It Is Suitable For Long-Distance Transportation Occasions.


    Custom Options

    1. Customized Capacity From 1 Ton To 100 Tons

    2. Any Kind Of Wheels (Polyurethane, Mcnamm, Solid, Super Elastic Or Pneumatic)

    3. Anti-Explosion, Anti-High Temperature,Anti-Water,Anti-Dust,Etc

    4. Customized System (Lifting, Weighing, Titling, Plc, Etc.)

    5. Optional Control System (Operation Handle/Remote Controller)

    6. Safety System (LED Flashing Lights, Sound Acoustic Devices, E-Stop, Buffer, Etc.)


    40 Tons Wireless Remote Control Rail Transfer Trolley For Molds Handling

    Technical parameters for Low-voltage track powered electric transfer carts KPD series
    ModelKPD-6tKPD-10tKPD-16tKPD-25tKPD-40tKPD-63tKPD-100tKPD-160tKPD-200t
    Rated load (t)61016254063100160200
    Countertop size
    (mm)
    Length360036004000450050005600630080008200
    Width200020002200220025002500280028003000
    Height55055060065070085090011001250
    Speed(m/min)303030302525202018
    Wheel base A(mm)200022002200250028003200360050005000
    Track medial distance C(mm)143514351435143514351435165020002000
    Wheel diameter(mm)400400400500500600700700700
    Bottom clearance(mm)505050606060607070
    Minimum turning radius303550556080100100
    Motor model / power
    (Kw)

    KPD

    (single-phase)

    JDYP-11-6JDYP-12-6JDYP-21-6JDYP-22-6
    2.23.557.5

    KPD

    (three-phase)

    YZ132M1-6YZ132M2-6YZ160M1
    -6
    YZ160M2-6YZ160L-6YZ160M2
    -6
    YZ160L
    -6
    2.23.75.57.5112×7.52×11
    Power modeKPD380V reduced to 36V / 360V reduced to 36V then boosted to 380V
    Recommended track model24kg/m38kg/m43kg/mQU80QU100
    Number of wheels48
    Maximum wheel Pressure (t)1.913.214.877.511.516.927.622.828.5
    Reference weight (t)3.43.724.268.511.415.225.531.5

    Note: 1) Other gauges, table sizes and load tonnages can be customized according to user requirements;

    2) Imported and domestic industrial wireless remote-control devices are optional;

    3) Optional imported wireless two-speed control;

    4) Optional matching automatic parking, and alarming when encountering person 2 meters away.

    40 Tons Wireless Remote Control Rail Transfer Trolley For Molds Handling
